Stainless steel pneumatic actuator is designed for use with butterfly valve when automating the control system. The pneumatic actuator is fixed on the valve using the pneumatic actuator's holder. Additionally, special plates with inductive sensors can be installed. Pneumatic actuators are made of AISI 304 stainless steel. These connecting fittings are used in the dairy, meat, vegetable, beverage and other food industries.

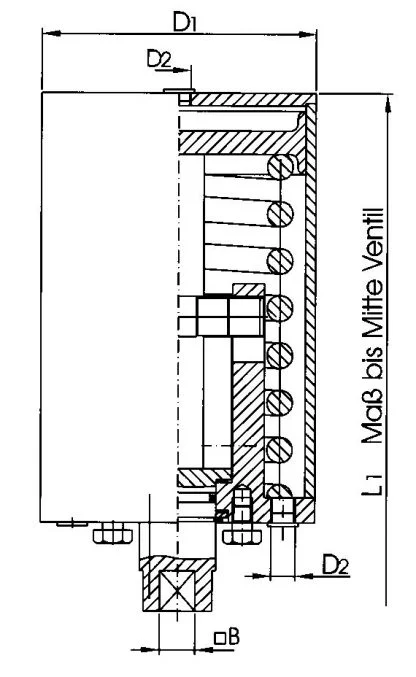

Measurements of pneumatic actuator:
| DN | D1 | D2 | B | L1 |
| 25 | 85 | R1/8″ | 9,5 | 226 |
| 32 | 85 | R1/8″ | 9,5 | 228 |
| 40 | 85 | R1/8″ | 9,5 | 231 |
| 50 | 85 | R1/8″ | 9,5 | 237 |
| 65 | 85 | R1/8″ | 9,5 | 246 |
| 75/3" | 85 | R1/8″ | 9,5 | 253 |
| 80 | 85 | R1/8″ | 9,5 | 253 |
| 100 | 85 | R1/8″ | 9,5 | 263 |
| 125 | 129 | R1/8″ | 14 | 332 |
| 150 | 129 | R1/8″ | 14 | 347 |
| 200 | 129 | R1/8″ | 14 | 385 |
| Product | Pneumatic mechanism |
|---|---|
| Category | Pneumatic actuators and their systems |
| Material / brand | AISI 304 |
| Standard | - |
| Condition | In stock |
| Delivery | Throughout Lithuania, 1–2 working days |
| Supplier | UAB Karuselė (since 1994) |
The product is made of AISI 304 stainless steel. AISI 316 is more resistant to chlorides than AISI 304 due to molybdenum.
Condition: In stock. For quantity inquiries, contact tel. +37068419240 or email karusele@karusele.com.
Yes, we deliver throughout Lithuania, usually within 1–2 working days.
Contact us using the provided contacts or leave a request – we will provide the price and delivery time.
