Description

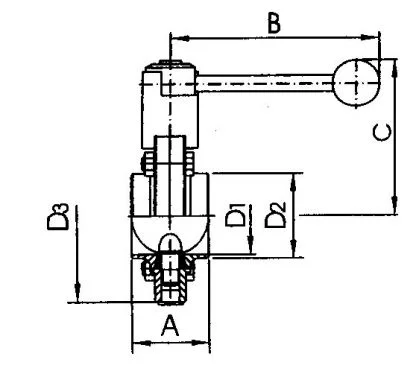

Measurements of DIN butterfly valve welded:
DN | A | B | C | D1 | D2 | D3 |
25 | 40 | 107 | 90 | 26 | 31 | 87 |
32 | 42 | 107 | 92 | 32 | 37 | 92 |
40 | 50 | 137 | 94 | 38 | 43 | 97 |
50 | 50 | 137 | 101 | 50 | 55 | 110 |
65 | 50 | 137 | 110 | 66 | 72 | 127 |
80 | 60 | 167 | 123 | 81 | 87 | 142 |
100 | 64 | 167 | 134 | 100 | 106 | 162 |
125 | 112 | 248 | 168 | 125 | 132 | 200 |
150 | 124 | 248 | 183 | 150 | 157 | 230 |
