Stainless steel filters are designed to collect large mechanical impurities from the flowing product, the size of which can reach from 0.01 mm to 1 mm. These products are used in the water supply, dairy, meat, vegetable, beverage and other food industries. The filter is made of AISI 304 or AISI 316 stainless steel.

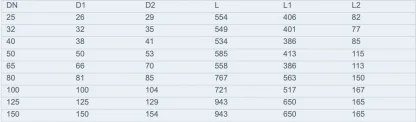

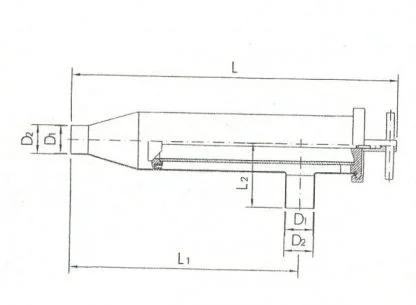

Measurements of the filter:
| DN | D1 | D2 | L | L1 | L2 |
| 25 | 26 | 29 | 554 | 406 | 82 |
| 32 | 32 | 35 | 549 | 401 | 77 |
| 40 | 38 | 41 | 534 | 386 | 85 |
| 50 | 50 | 53 | 585 | 413 | 115 |
| 65 | 66 | 70 | 558 | 386 | 113 |
| 80 | 81 | 85 | 767 | 563 | 150 |
| 100 | 100 | 104 | 721 | 517 | 167 |
| 125 | 125 | 129 | 943 | 650 | 165 |
| 150 | 150 | 154 | 943 | 650 | 165 |
