Description
Measurements of cross:
DN | L | I3 | d1 | d2 |
25 | 100 | 50 | 25 | 28 |
32 | 110 | 55 | 31 | 34 |
40 | 120 | 60 | 37 | 40 |
50 | 140 | 70 | 49 | 52 |
65 | 160 | 80 | 66 | 70 |
80 | 180 | 90 | 81 | 85 |
100 | 200 | 100 | 100 | 104 |

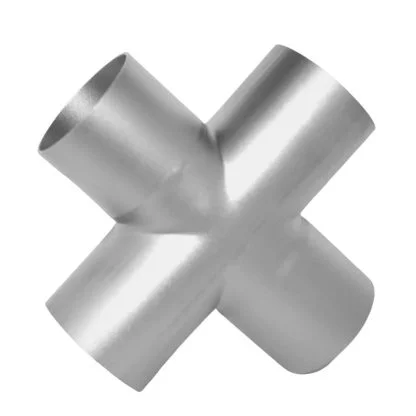

Cross
The stainless steel cross is designed to join stainless steel pipes by welding. Stainless steel crosses are made of AISI 304 or AISI 316 metal. This fitting is suitable for the dairy, meat, vegetable, beverage and other food industries.
